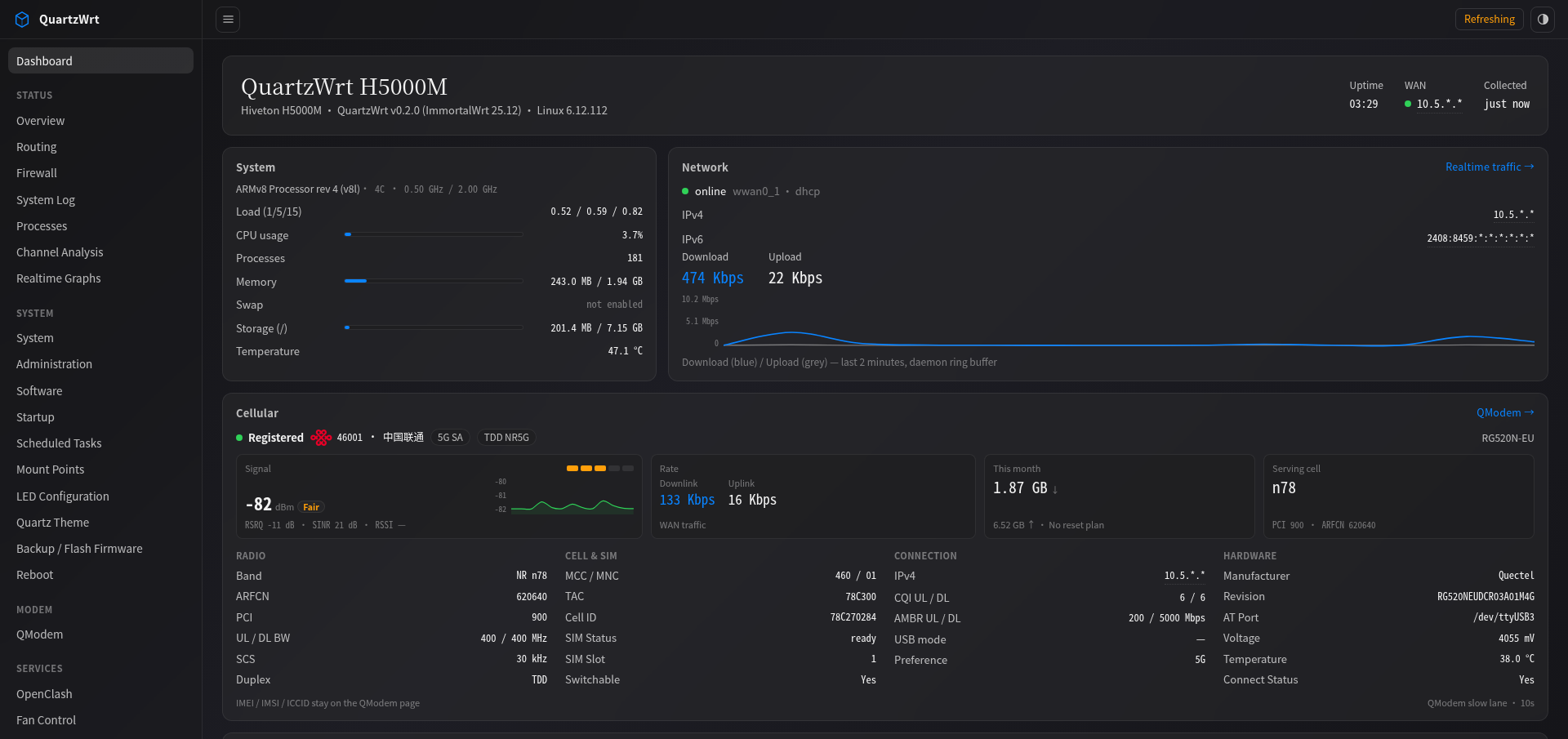

Quartz-grade web UI
Glass, dark mode, and a card-based dashboard. quartz-daemon aggregates system, network, and service data so one request renders the whole page.
Built on ImmortalWrt 25.12 · apk
OpenWrt, built
OpenWrt, built
for real networks
QuartzWrt brings a macOS-inspired web UI, a Flutter app, and first-class cellular / 5G management to your router. Dual feeds, pinned versions, and signed packages make builds and upgrades reproducible.
Hiveton H5000M hardware · English dashboard
3Hardware targets
2Firmware variants
2Software feeds
1Cross-platform app
Capabilities
More than a reskin
From the first screen in your browser to remote management on your phone, QuartzWrt connects everything through one data contract.
Flutter app
mDNS discovery, TOFU pairing, and JWT tokens. An embedded tsnet engine lets the app reach your router over Tailscale without a system VPN.
Cellular / 5G management
Built on qmodem: modem info, signal and serving cell, dialing, SIM, SMS, AT debugging, and traffic accounting.
Dual-feed architecture
quartz carries our core packages; thirdparty collects community plugins. Tags and commits are pinned, duplicates are scanned, and builds stay reproducible.
Signed feed & OTA
APK indexes are signed with an EC P-256 key; OTA manifests are signed with usign and bound to the image SHA-256.
Reproducible builds
GitHub Actions and local scripts follow the same steps: pinned base, pinned feeds, manifest gates, and device assertions.

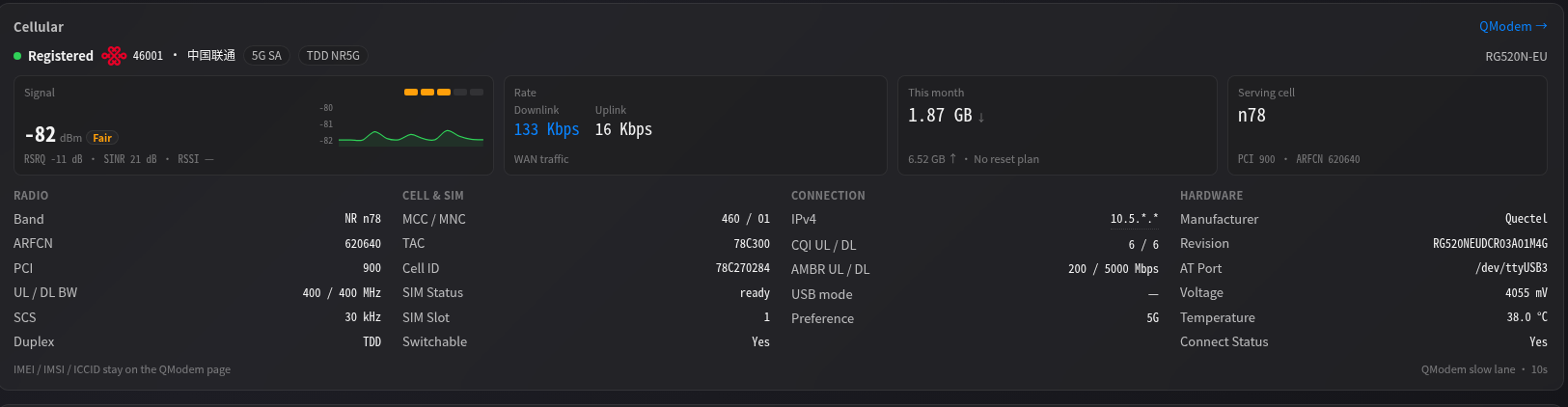

Cellular first
Cellular, fully managed
Not just AT commands in a text box. QuartzWrt turns modem capabilities into a stable data contract shared by the dashboard, the app, and the web UI.
- Signal quality, serving cell, PCC / ARFCN / PCI / bandwidth
- Dial status, IPv4 / IPv6, uplink and downlink rates, traffic usage
- SIM slots, SMS, IMEI, band lock, and network preference
- Preset AT commands shared with the web UI, with Chinese and English labels
Verified on Erya FNet3399 and Hiveton H5000M with RG520N-EU.
Hardware
Validated hardware targets
Each target has its own device layer: non-invasive patches, a device seed, dropped-in files, and image assertions.
ARM · 5G CPE
v0.2.0
Erya FNet3399
RK3399 · rockchip/armv8
- RG520N-EU 5G module
- Onboard WiFi / Bluetooth
- PWM fan curve
ARM · WiFi 7
v0.2.0
Hiveton H5000M
MT7987A · mediatek/filogic
- WiFi 7 dual-band (MT7992)
- M.2 USB 5G
- 2.5G Ethernet
x86_64 · Generic
v0.2.0
x86_64 generic image
x86/64 · UEFI / BIOS
- Soft router / mini PC
- combined / combined-efi
- std and docker variants
Download
Download & upgrade
Firmware is published on GitHub Releases; the package feed is a separately signed repository for long-term incremental upgrades.
Latest stable
v0.2.0
QuartzWrt firmware
Three hardware targets, std and docker variants, shipped with manifest, buildinfo, OTA manifests, and sha256sums.txt.
x86_64FNet3399H5000Mstddocker
Mobile
v0.7.1
QuartzWrt App
Built with Flutter: LAN discovery, pairing, remote access, router settings, and cellular management. APKs are published in the app repository's releases.
AndroidmDNStsnet
Package feed
Signed package feed
Firmware ships with the feed preconfigured; usually you only need apk update. To add it manually, write these URLs to /etc/apk/repositories.d/quartz-feed.list:
https://sources.quartzwrt.org/quartz-feed
https://sources.quartzwrt.org/quartz-feed/packages/<arch>/quartz
https://sources.quartzwrt.org/quartz-feed/packages/<arch>/thirdparty
https://sources.quartzwrt.org/quartz-feed/targets/<board>/<subtarget>/packages
Ecosystem
Four repositories, one delivery chain
Build, core, third-party, and app are physically separated and evolve independently, connected by pinned feeds and data contracts.
QuartzWrt-Builder
Base pinning, device layers, and build / signing / release pipelines.
QuartzWrt-PackagesTheme, dashboard, daemon, app-api, and bridge adapters.
QuartzWrt-ThirdPartyThird-party collection, controlled forks, version pins, and runtime resource inventory.
QuartzWrt-AppFlutter app: discovery, pairing, remote access, and full management.
